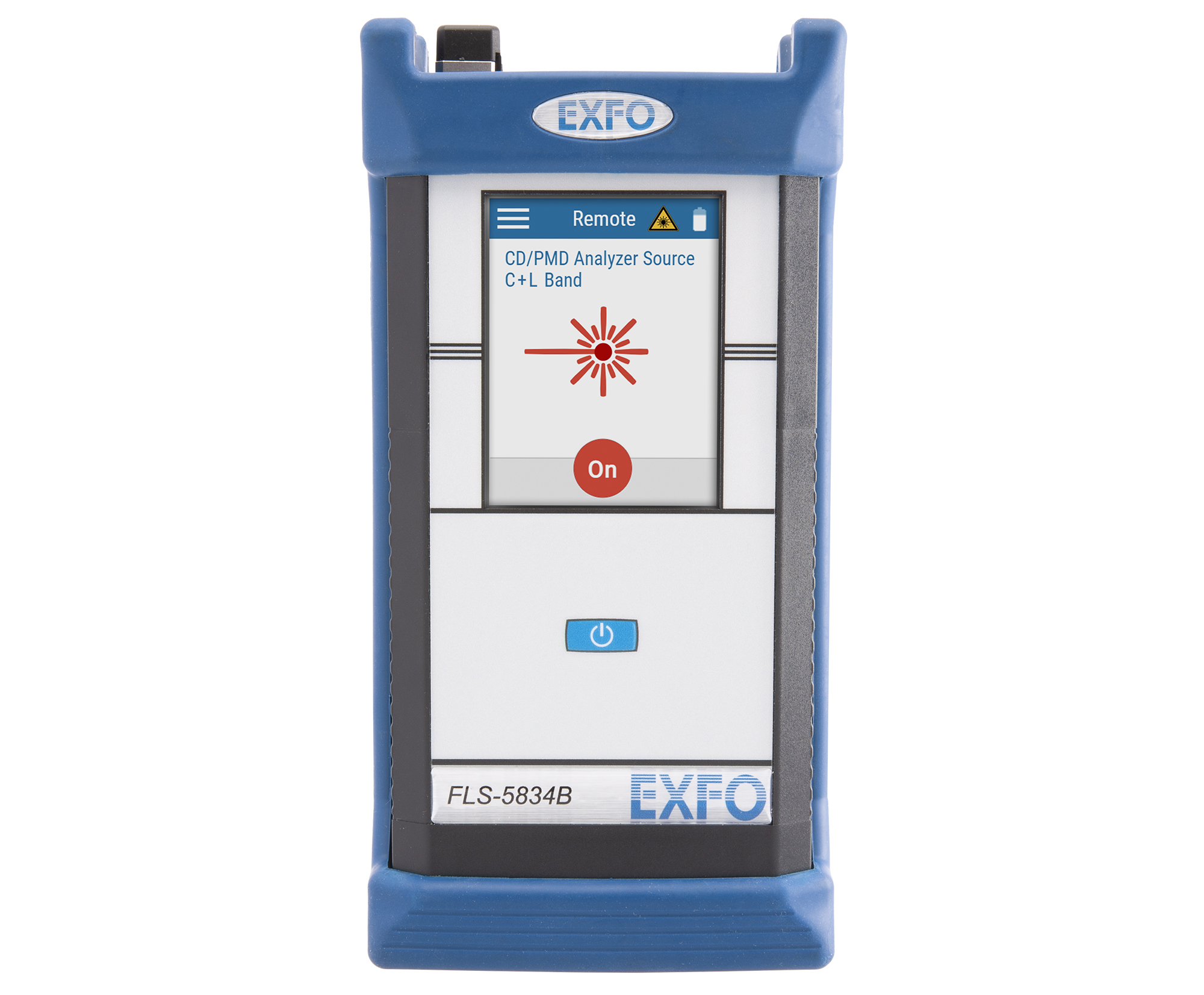

FLS-5800B - CD/PMD analyzer source

Model(s) available: FLS-5834B Modulated, polarized, high-power LED that can also be used as a broadband source for DWDM channel and component testing.

Datenblatt Bedienungsanleitung

Leistungsmerkmale

High-power super LED (SLED)
Modulated for chromatic dispersion measurement
Polarized for PMD measurement
Broadband spectral range
Battery powered for field autonomy

Anwendungen

Polarization mode dispersion (PMD)
Modulated for chromatic dispersion measurement
Broadband spectral range

Beschreibung

High modulation

The FLS-5834B’s high modulation makes it a perfect complement to the FTB-5800 Chromatic Dispersion Analyzer, whose technology is based on the phase-shift method. This first-class duo lets you run chromatic dispersion (CD) measurements through amplifiers such as EDFAs, providing the highest accuracy in field CD testing.

High degree of polarization

When you need a broadband, highly polarized source for measuring PMD, turn to the FLS-5834B. Test PMD through EDFAs by combining the FLS-5834B with the patent-design breakthrough technology of the FTB-5500B PMD Analyzer.
