Up to 200 nm/s scanning speed

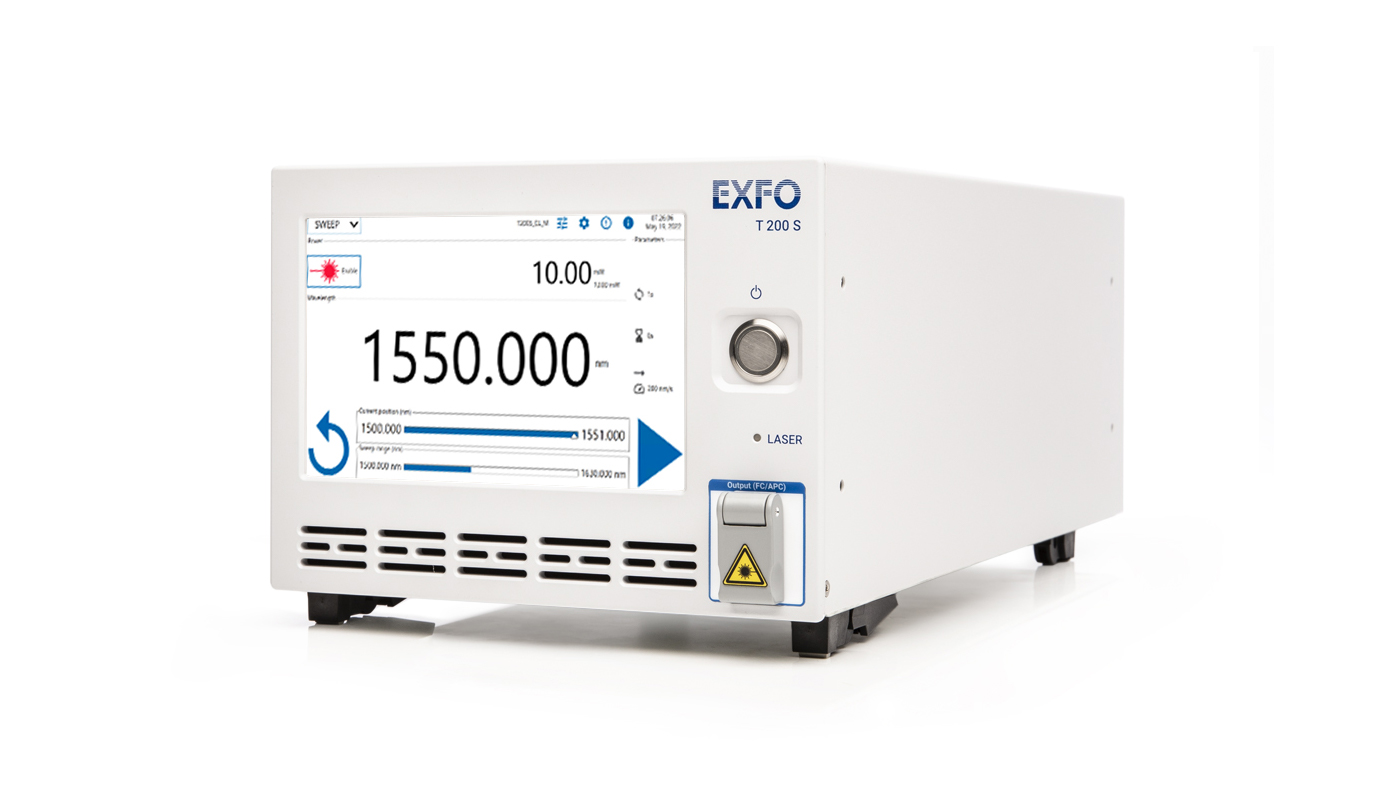

T200S - High-power continuously tunable laser
Overview
Faster and highly reliable testing for optical components, including photonic integrated circuits.
Applications
Passive optical components
Photonic integrated circuits
Multipurpose tunable laser for R&D
Highlights
Testing high-speed photonic integrated circuits (PICs)
Integrated photonics can include complex optical components with high-contrast spectrum. For instance, a ring resonator may have very sharp features making it difficult to characterize insertion loss. In addition to insertion loss, some devices require extended measurements of return loss or polarization dependent loss, with the same level of precision. Finally, simultaneous testing of many devices or outputs from one single device is also required to speed up PIC characterization. To test such devices, the T200S laser can be jointly operated with the CTP10, EXFO’s component testing platform. With high-resolution and high-accuracy spectral measurement, the CTP10 is an integrated solution that leverages the full potential of the T200S for operations at 200 nm/s sweep speed. The T200S is also compatible with the CT440, EXFO’s compact component tester operating at 100 nm/s.
Industry-leading features
10 dBm output power with high spectral purity: Laser exhibits a crystal-clear optical spectrum at a nominal optical output power of 10 dBm over the entire tuning range. Optical cavity eliminates broadband source spontaneous emission (SSE) without any compromise on optical power. High spectral purity is maintained throughout the laser sweep through active mode-hop control, ensuring reliable and repeatable wavelength sweeps.
High-speed tunability: Laser scanning speed is 100 nm/s and can be configured with an optional 200 nm/s scanning speed. When speed is critical, the T200S ensures repeatable yet fast measurements. Otherwise, the laser can be set to slower scanning speeds (e.g., for legacy detection systems)."
Step-by-step or continuously swept wavelength scans: Two user modes at hand, optimized for specific usage: TUNE or SWEEP. With TUNE, laser control ensures excellent linewidth at any wavelength or provides rapid “go-to” wavelength tuning. SWEEP performs high-speed mode-hop-free scans over the full wavelength range of the laser.
Compact and easy-to-use
The half-rack configuration makes the T200S an attractive device for lab applications, with limited footprint. The screen can be adjusted to suit dark optical lab environments and display relevant information so that you can see them from the other side of the optical bench. A rackmount accessory is available to mount one or two lasers inside a 19-in rack bench. With control buttons situated at each screen corner, the laser can be operated without even looking at the screen.
Part of the leading series of continuously tunable lasers
The T200S is part of EXFO’s series of continuously tunable lasers that also include the T500S, a tunable laser covering the wavelength range from 1240 to 1680 nm. Refer to the T500S specification sheet for more details.
