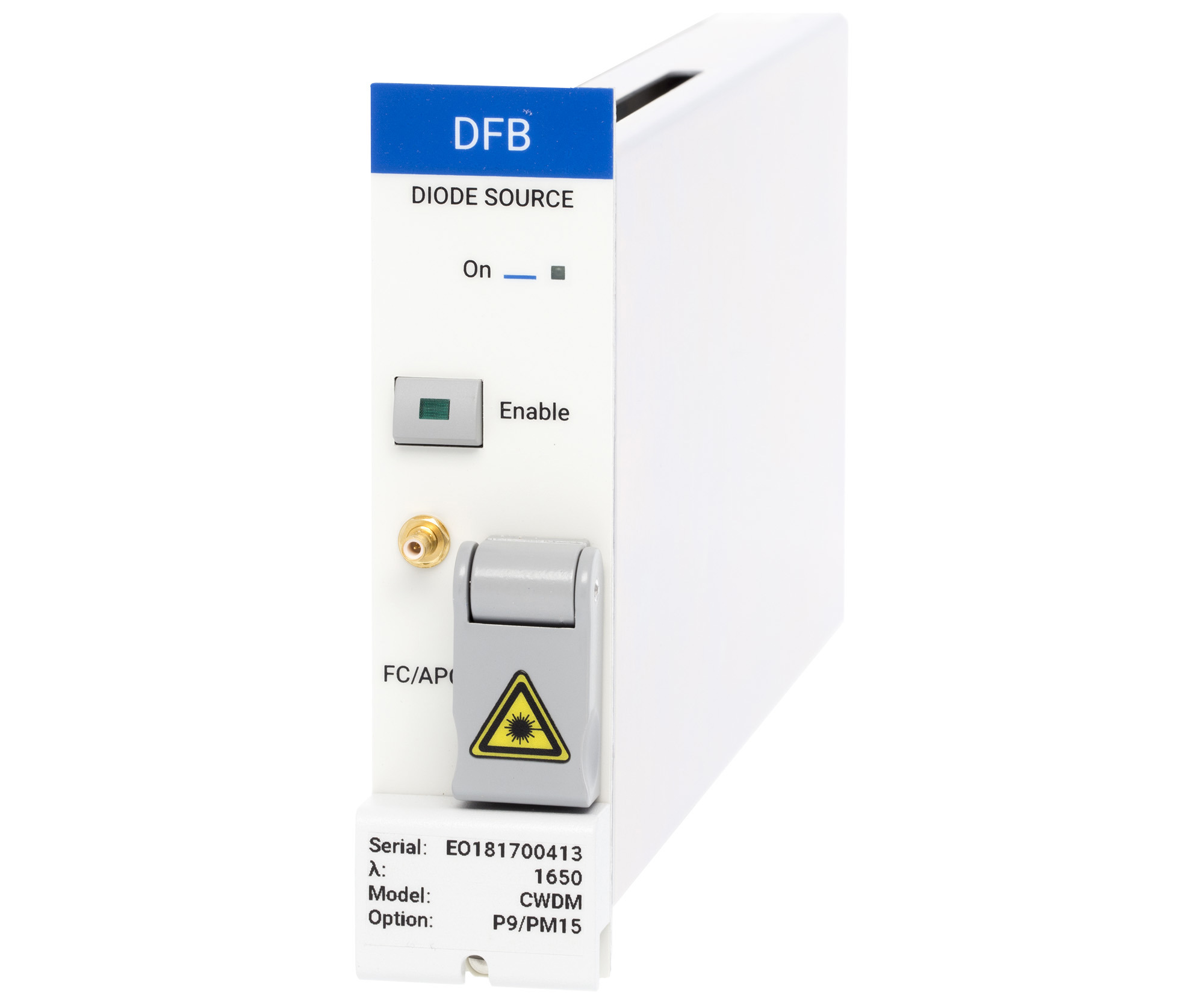

OSICS DFB CWDM - High-power laser diode modules

High-performance distributed feedback laser diodes that are perfect for CWDM network testing.

Hoja de especificaciones Manual del usuario

Características principales

Internal and external modulation

Aplicaciones

CWDM channel testing

Optical Supervisory Channel

OTDR laser source

Especificaciones

Especificaciones
Product type	Module

Hoja de especificaciones

Descripción

OSICS DFB CWDM are high-performance distributed feedback lasers featuring internal and external modulation, precise tunability and exceptional wavelength stability.

Wide range of available models

The OSICS DFB CWDM product family offers exceptional coverage of most CWDM channels from 1270 nm to 1610 nm, with two extra wavelengths at 1625 nm and 1650 nm.

Superior optical power and wavelength stability

These modules offer +10 dBm optical power coupled with a single-mode fiber and a remarkable 5 pm wavelength stability over one hour. Polarization maintaining fiber is also available on selected models.

Precise wavelength tuning

The internal wavelength calibration delivers ±30 pm accuracy and the wavelength can be finely tuned over 1.8 nm (typ.) with the internal temperature control.

Front-panel control

Each module can be controlled from the front panel of the mainframe or through the remote interface. The modules and the mainframe offer a full suite of internal and external modulation capabilities.
