EA-4000 - Oscilloscope d'échantillonnage optique et électrique

La lunette d'échantillonnage la plus rapide du secteur. Une solution puissante pour la chaîne de production 5G.

Caractéristiques principales

Échantillons/s 1M ultra rapides, mesure 1000 formes d'onde en 2 secondes (2000 échantillons/forme d'onde)
Récepteur optique supportant le monomode et le multimode
Mesures répétables et comparables à celles d'un scope de niveau 1
Supporte le verrouillage de motif PRBS31 (en option)
Mode faible gigue intégré (en option)

Applications

Test de production des émetteurs-récepteurs : évaluation et validation
Essais de sensibilité des récepteurs optiques
Étalonnage sous contrainte du TP1-a

Description

The EA-4000 Eye Analyzer is the industry’s fastest optical and electrical sampling oscilloscope. It is ideal for eye diagram analysis when characterizing transmitters and receivers on the production floor. The EA-4000 supports singlemode and multimode fibers and has been designed with an ultra-low jitter mode for outstanding performance in manufacturing.

Extended capabilities are available with either single or dual ports for electrical and optical characterization of NRZ-based components.

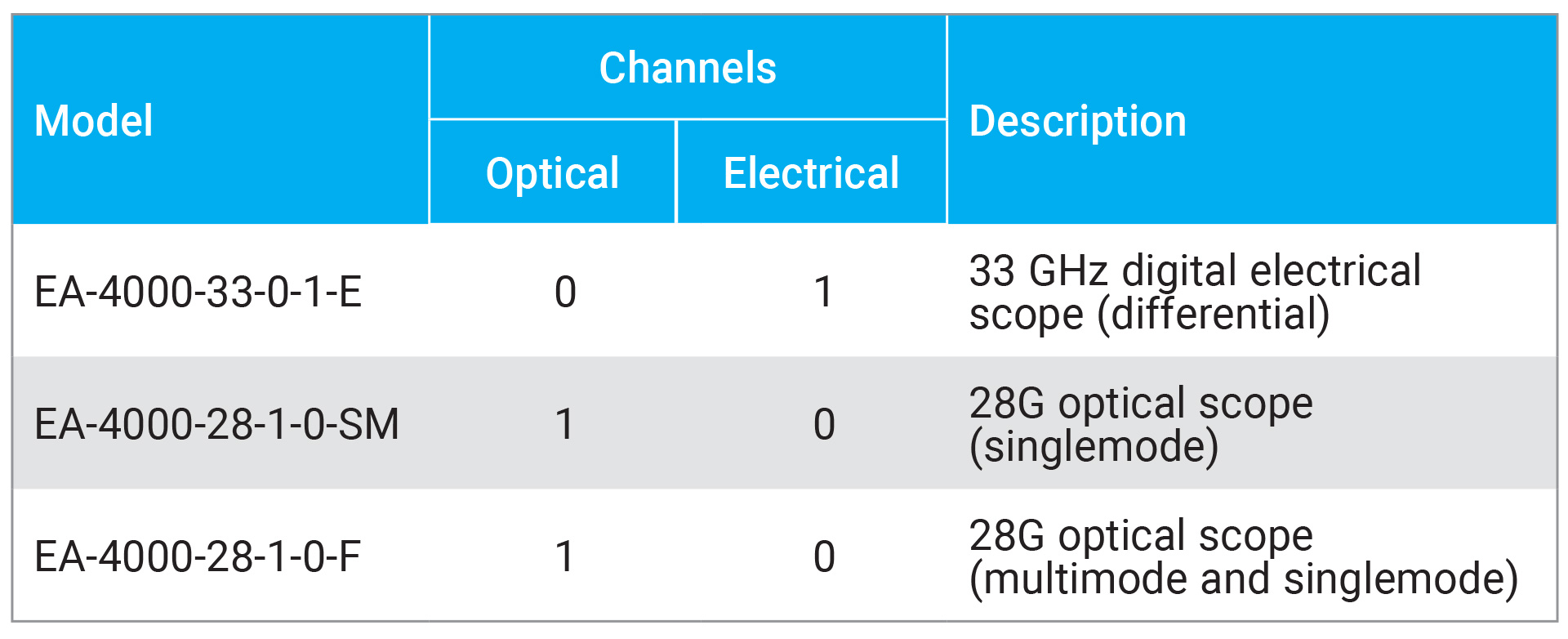

The EA-4000 has three models that cover different applications:

Low rates such as 1.25G, 2.5G and 10G are also supported. For more details, please refer to the specification sheet.

The EA-4000 Eye Analyzer—along with the BA-4000 Bit Analyzer, the MA-4000 Module Analyzer and the CD-4000 Clock Recovery—is part of EXFO’s unique solution for transceiver validation from end to end.
