RF spectrum analyzer | 5GPro Spectrum Analyzer

Key features

Complete, compact solution for validating 4G and 5G RAN

FR1 (sub-6 GHz) and FR2 (mmWave) with a single solution

Real-time spectrum analysis (RTSA) of bandwidth up to 100 MHz

First field upgradeable solution: scale at your own pace

Coverage mapping of channel power

TDD gated sweep

RF absolute time error

Applications

Real-time spectrum analysis

5G SSB blind scanner

5GNR signal analyzer

LTE analysis

OTA RF measurement

Channel Power measurements

Coverage Mapping for Channel Power

Audible tone for interference hunting

Clear the air for 5G™

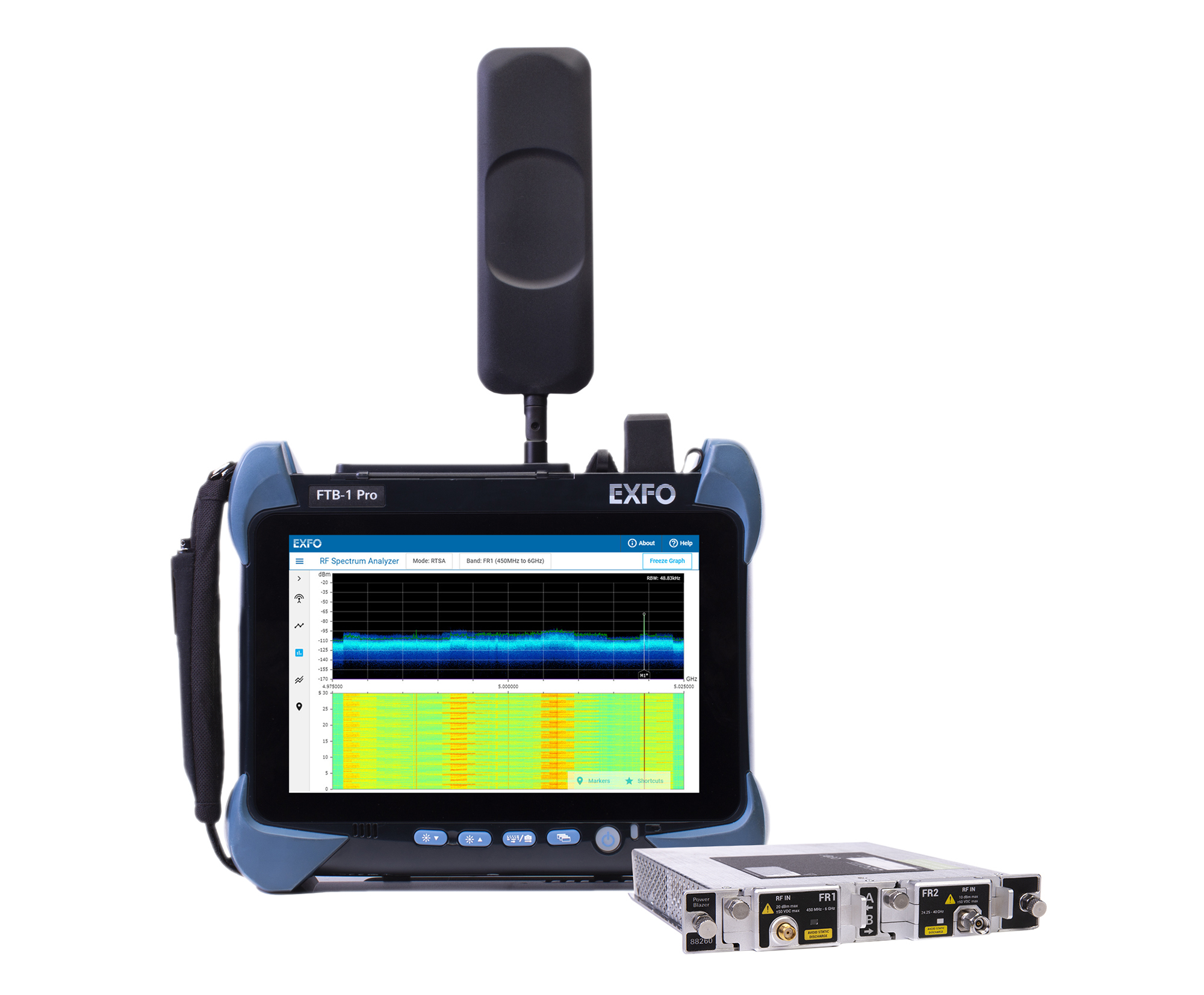

The 5GPro Spectrum Analyzer helps field techs and RF engineers validate 5G RAN installations, and perform maintenance and troubleshooting.

Spectrum clearing

During the planning stages and prior to repurposing or reallocating an existing band (or before rolling out a new cell site), operators need to make sure that any previously occupied spectrum (at a specified band) is free of unwanted legacy signals. Unwelcomed signals can create interference that is problematic for both LTE and 5G networks.

EXFO's 5GPro Spectrum Analyzer (including RTSA) can determine if unwanted signals exist and when present, help field techs locate their source through interference hunting.


5G and 4G/LTE cell site installation

5G is deploying at a fast pace requiring the installation and turnup of thousands of new 5G sites. Since copper connections are a thing of the past, mobile network operators and contractors must expand their testing capabilities to include the use of RF spectrum analyzers to validate 5G installations.

The 5GPro Spectrum Analyzer enables field techs to perform 4G/5G signal analysis, including beam analysis, to quickly detect and troubleshoot problems by identifying the root cause of poor antenna and beamforming performance.

RF interference hunting

Spectrum in 4G/LTE and the lower bands of 5G (i.e., sub-6 Ghz) are becoming more crowded. Home electronics and commercial devices using adjacent spectrum can cause interference within operator networks affecting mobile device quality of service. As operators deploy higher frequency bands (mmWave) new types of interference will emerge and must be addressed. In addition, today’s spectrum analyzers must support new channel bandwidth requirements.

EXFO’s 5GPro Spectrum Analyzer enables field technicians to troubleshoot interference issues quickly and accurately. Our real-time spectrum analyzer (RTSA) supports both 4G/5G FR1 and 5G FR2 frequency bands and real-time spectrum analysis up to 100 MHz.


DAS validation and troubleshooting

Distributed antenna systems (DAS) are shared between operators and the only way to test the RF power level is by plugging directly into existing TAP ports on a DAS system. Whenever there is an issue, this will be the first course of action as it will verify whether the other vendors are transmitting at too high a power level, as a result causing the interference, PIM or power level issue.

The 5GPro Spectrum Analyzer validates RF power levels and displays the spectrum while plugged directly into the RF TAP port of a DAS system.

Why EXFO for RF?

How can we make testing simpler, faster, better? At EXFO, that’s a question we’ve been asking for over 35 years. And it’s one we continue to answer with a steady stream of innovative, award-winning solutions.

Now we’re bringing fresh eyes and our field-focused expertise to the area of RF testing. Working closely with some of the world's biggest Tier 1 mobile operators and industry-leading RF technology partners, we re-imagined RF spectrum analysis to help clear the air for 5G.

Revolutionary RF modules for FR1 and FR2, providing optimal scalability
Smart, UX-optimized GUI designed for the way field techs should test
Striking the right balance between portability and functionality
Bringing intelligence to RF testing with 5G SSB blind scanner and TDD gated sweep
Easy and efficient test methodology for mapping channel power data to identify potential interference issues at specific frequencies and geographic locations.

Designed by field techs

Current RF spectrum analyzers are complex, requiring extensive RF knowledge to operate. And with equipment from multiple vendors, each with different GUIs and processes, things can get complicated. Learning it all takes time, but 5G won’t wait.

Do more in less time: purpose-built and automated, making it easier and quicker to detect, locate and eliminate RF issues in the RAN (i.e., interference, beam performance issues etc.)
Field-specific features: exactly what’s required in the field—no confusing apps and features that buyers paid for, but that field techs will never use
Compact, field portable: validate 4G/LTE and 5G RAN with a wide range of functionalities built into a small-footprint design

RF testing that scales and adapts with your network

Operators need to support, maintain and test both new and existing RF technologies (e.g., 3G/4G/LTE/5G-NR). Testing solutions that require two tools, one for 4G (mostly FR1 low bands) and a second for 5G (FR1 mid band and FR2), are both costly and inefficient. Meet those challenges head-on with EXFO's 5GPro Spectrum Analyzer:

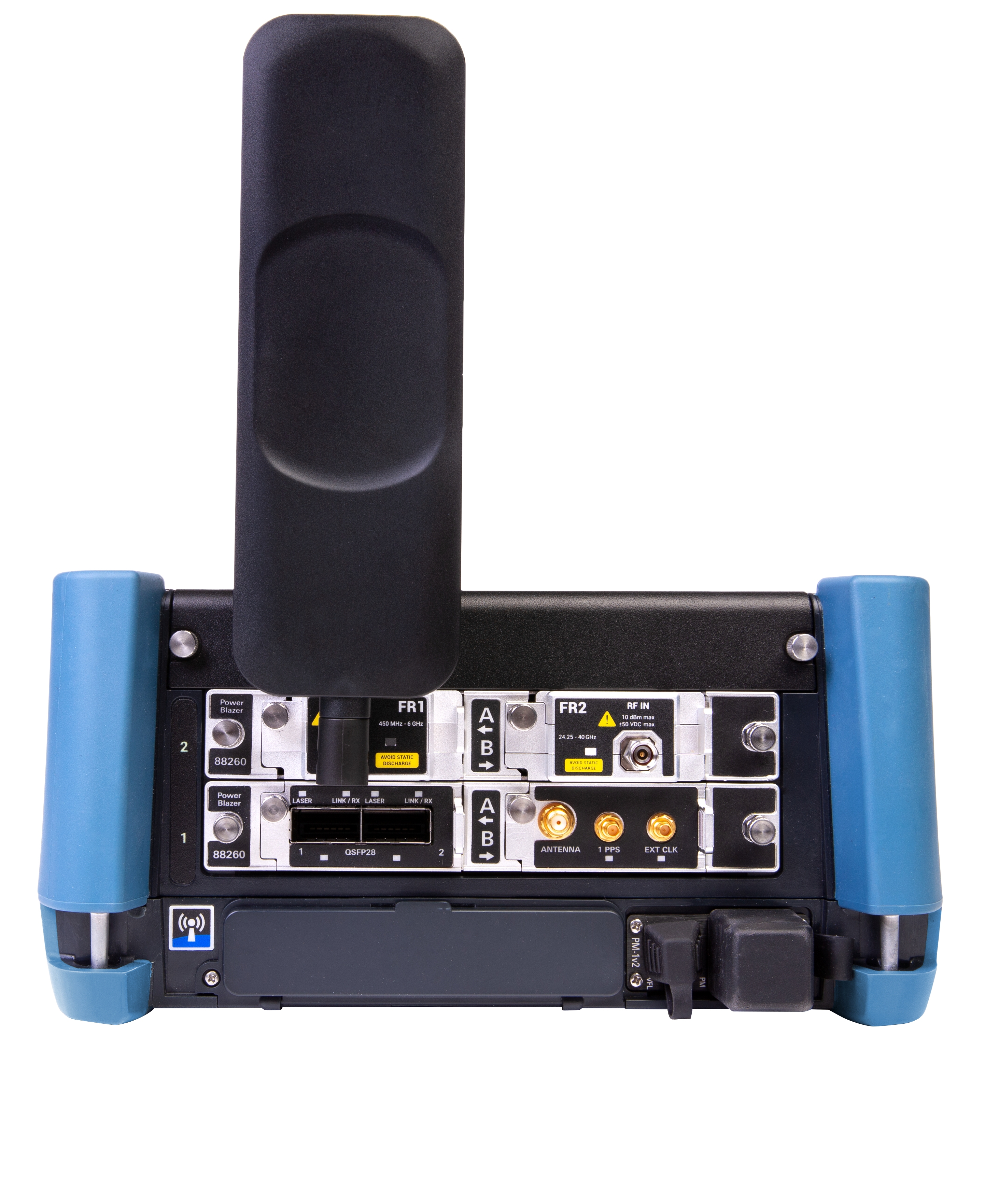

Go modular: a single RF spectrum testing solution that supports both FR1 (450 MHz - 6 GHz) and FR2 (24.25 GHz - 40 GHz) bands
Built for now and later: start with FR1 testing and add FR2 as requirements change
Test different RF frequencies plus CPRI, eCPRI and Ethernet (up to 100G), timing and sync, and fiber using a modular, future-proof design
